Regular window functions

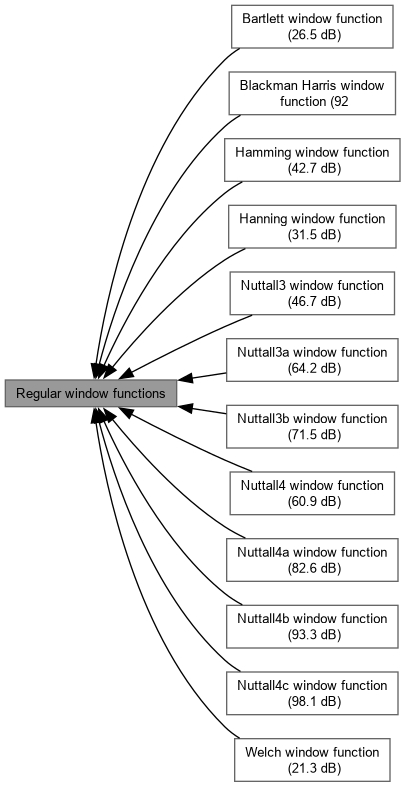

Collaboration diagram for Regular window functions:

Topics
	Bartlett window function (26.5 dB)
	Blackman Harris window function (92
	Hamming window function (42.7 dB)
	Hanning window function (31.5 dB)
	Nuttall3 window function (46.7 dB)
	Nuttall3a window function (64.2 dB)
	Nuttall3b window function (71.5 dB)
	Nuttall4 window function (60.9 dB)
	Nuttall4a window function (82.6 dB)
	Nuttall4b window function (93.3 dB)
	Nuttall4c window function (98.1 dB)
	Welch window function (21.3 dB)

Functions
void	tpt_nuttall4c_f64 (f64_t *pDst, uint32_t blockSize)

Detailed Description

Regular window functions that can be used for detecting tones or estimating the noise. If you need to estimate the amplitude of a tones, prefer a flat top window.

Parameters

[out]	pDst	points to the output generated window
[in]	blockSize	number of samples in the window

Parameters of the window

Parameter	Value
Peak sidelobe level	98.1 dB
Normalized equivalent noise bandwidth	1.9761 bins
3 dB bandwidth	1.8687 bins
Flatness	-0.8506 dB
Recommended overlap	65.6 %

Function Documentation

tpt_nuttall4c_f64()

void tpt_nuttall4c_f64	(	f64_t *	pDst,
		uint32_t	blockSize )
