LIBDSP: include/libdsp/nmsis/riscv_math_memory.h File Reference

LIBDSP Version 4.1.9

LIBDSP Software Library

Loading...

Searching...

No Matches

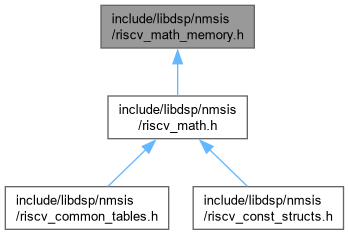

This graph shows which files directly or indirectly include this file:

Functions
__STATIC_FORCEINLINE q63_t	read_q31x2 (q31_t const *pQ31)
	Read 2 Q31 from Q31 pointer.
__STATIC_FORCEINLINE q63_t	read_q31x2_ia (q31_t **pQ31)
	Read 2 Q31 from Q31 pointer and increment pointer afterwards.
__STATIC_FORCEINLINE q63_t	read_q31x2_da (q31_t **pQ31)
	Read 2 Q31 from Q31 pointer and decrement pointer afterwards.
__STATIC_FORCEINLINE void	write_q31x2 (q31_t *pQ31, q63_t value)
	Write 2 Q31 to Q31 pointer.
__STATIC_FORCEINLINE void	write_q31x2_ia (q31_t **pQ31, q63_t value)
	Write 2 Q31 to Q31 pointer and increment pointer afterwards.
__STATIC_FORCEINLINE q31_t	read_q15x2 (q15_t const *pQ15)
	Read 2 Q15 from Q15 pointer.
__STATIC_FORCEINLINE q31_t	read_q15x2_ia (q15_t **pQ15)
	Read 2 Q15 from Q15 pointer and increment pointer afterwards.
__STATIC_FORCEINLINE q31_t	read_q15x2_da (q15_t **pQ15)
	Read 2 Q15 from Q15 pointer and decrement pointer afterwards.
__STATIC_FORCEINLINE void	write_q15x2 (q15_t *pQ15, q31_t value)
	Write 2 Q15 to Q15 pointer.
__STATIC_FORCEINLINE void	write_q15x2_ia (q15_t **pQ15, q31_t value)
	Write 2 Q15 to Q15 pointer and increment pointer afterwards.
__STATIC_FORCEINLINE void	write_q15x4 (q15_t *pQ15, q63_t value)
	Write 4 Q15 to Q15 pointer.
__STATIC_FORCEINLINE void	write_q15x4_ia (q15_t **pQ15, q63_t value)
	Write 4 Q15 to Q15 pointer and increment pointer afterwards.
__STATIC_FORCEINLINE void	write_q15x4_da (q15_t **pQ15, q63_t value)
	Write 4 Q15 to Q15 pointer and decrement pointer afterwards.
__STATIC_FORCEINLINE q63_t	read_q15x4 (q15_t const *pQ15)
	Read 4 Q15 from Q15 pointer.
__STATIC_FORCEINLINE q63_t	read_q15x4_ia (q15_t **pQ15)
	Read 4 Q15 from Q15 pointer and increment pointer afterwards.
__STATIC_FORCEINLINE q63_t	read_q15x4_da (q15_t **pQ15)
	Read 4 Q15 from Q15 pointer and decrement pointer afterwards.
__STATIC_FORCEINLINE q31_t	read_q7x4 (q7_t const *pQ7)
	Read 4 Q7 from Q7 pointer.
__STATIC_FORCEINLINE q31_t	read_q7x4_ia (q7_t **pQ7)
	Read 4 Q7 from Q7 pointer and increment pointer afterwards.
__STATIC_FORCEINLINE q31_t	read_q7x4_da (q7_t **pQ7)
	Read 4 Q7 from Q7 pointer and decrement pointer afterwards.
__STATIC_FORCEINLINE q63_t	read_q7x8 (q7_t const *pQ7)
	Read 8 Q7 from Q7 pointer.
__STATIC_FORCEINLINE q63_t	read_q7x8_ia (q7_t **pQ7)
	Read 8 Q7 from Q7 pointer and increment pointer afterwards.
__STATIC_FORCEINLINE q63_t	read_q7x8_da (q7_t **pQ7)
	Read 8 Q7 from Q7 pointer and decrement pointer afterwards.
__STATIC_FORCEINLINE void	write_q7x4 (q7_t *pQ7, q31_t value)
	Write 4 Q7 to Q7 pointer.
__STATIC_FORCEINLINE void	write_q7x4_ia (q7_t **pQ7, q31_t value)
	Write 4 Q7 to Q7 pointer and increment pointer afterwards.
__STATIC_FORCEINLINE void	write_q7x8_ia (q7_t **pQ7, q63_t value)
	Write 8 Q7 to Q7 pointer and increment pointer afterwards.

Function Documentation

◆ read_q15x2()

__STATIC_FORCEINLINE q31_t read_q15x2 ( q15_t const * pQ15 )

Read 2 Q15 from Q15 pointer.

Parameters

[in] pQ15 points to input value

Returns: Q31 value

◆ read_q15x2_da()

__STATIC_FORCEINLINE q31_t read_q15x2_da ( q15_t ** pQ15 )

Read 2 Q15 from Q15 pointer and decrement pointer afterwards.

Parameters

[in] pQ15 points to input value

Returns: Q31 value

◆ read_q15x2_ia()

__STATIC_FORCEINLINE q31_t read_q15x2_ia ( q15_t ** pQ15 )

Read 2 Q15 from Q15 pointer and increment pointer afterwards.

Parameters

[in] pQ15 points to input value

Returns: Q31 value

◆ read_q15x4()

__STATIC_FORCEINLINE q63_t read_q15x4 ( q15_t const * pQ15 )

Read 4 Q15 from Q15 pointer.

Parameters

[in] pQ15 points to input value

Returns: Q63 value

◆ read_q15x4_da()

__STATIC_FORCEINLINE q63_t read_q15x4_da ( q15_t ** pQ15 )

Read 4 Q15 from Q15 pointer and decrement pointer afterwards.

Parameters

[in] pQ15 points to input value

Returns: Q31 value

◆ read_q15x4_ia()

__STATIC_FORCEINLINE q63_t read_q15x4_ia ( q15_t ** pQ15 )

Read 4 Q15 from Q15 pointer and increment pointer afterwards.

Parameters

[in] pQ15 points to input value

Returns: Q63 value

◆ read_q31x2()

__STATIC_FORCEINLINE q63_t read_q31x2 ( q31_t const * pQ31 )

Read 2 Q31 from Q31 pointer.

Parameters

[in] pQ31 points to input value

Returns: Q63 value

◆ read_q31x2_da()

__STATIC_FORCEINLINE q63_t read_q31x2_da ( q31_t ** pQ31 )

Read 2 Q31 from Q31 pointer and decrement pointer afterwards.

Parameters

[in] pQ31 points to input value

Returns: Q63 value

◆ read_q31x2_ia()

__STATIC_FORCEINLINE q63_t read_q31x2_ia ( q31_t ** pQ31 )

Read 2 Q31 from Q31 pointer and increment pointer afterwards.

Parameters

[in] pQ31 points to input value

Returns: Q63 value

◆ read_q7x4()

__STATIC_FORCEINLINE q31_t read_q7x4 ( q7_t const * pQ7 )

Read 4 Q7 from Q7 pointer.

Parameters

[in] pQ7 points to input value

Returns: Q31 value

◆ read_q7x4_da()

__STATIC_FORCEINLINE q31_t read_q7x4_da ( q7_t ** pQ7 )

Read 4 Q7 from Q7 pointer and decrement pointer afterwards.

Parameters

[in] pQ7 points to input value

Returns: Q31 value

◆ read_q7x4_ia()

__STATIC_FORCEINLINE q31_t read_q7x4_ia ( q7_t ** pQ7 )

Read 4 Q7 from Q7 pointer and increment pointer afterwards.

Parameters

[in] pQ7 points to input value

Returns: Q31 value

◆ read_q7x8()

__STATIC_FORCEINLINE q63_t read_q7x8 ( q7_t const * pQ7 )

Read 8 Q7 from Q7 pointer.

Parameters

[in] pQ7 points to input value

Returns: Q63 value

◆ read_q7x8_da()

__STATIC_FORCEINLINE q63_t read_q7x8_da ( q7_t ** pQ7 )

Read 8 Q7 from Q7 pointer and decrement pointer afterwards.

Parameters

[in] pQ7 points to input value

Returns: Q63 value

◆ read_q7x8_ia()

__STATIC_FORCEINLINE q63_t read_q7x8_ia ( q7_t ** pQ7 )

Read 8 Q7 from Q7 pointer and increment pointer afterwards.

Parameters

[in] pQ7 points to input value

Returns: Q63 value

◆ write_q15x2()

__STATIC_FORCEINLINE void write_q15x2	(	q15_t *	pQ15,
		q31_t	value )

Write 2 Q15 to Q15 pointer.

Parameters

[in]	pQ15	points to input value
[in]	value	Q31 value

◆ write_q15x2_ia()

__STATIC_FORCEINLINE void write_q15x2_ia	(	q15_t **	pQ15,
		q31_t	value )

Write 2 Q15 to Q15 pointer and increment pointer afterwards.

Parameters

[in]	pQ15	points to input value
[in]	value	Q31 value

◆ write_q15x4()

__STATIC_FORCEINLINE void write_q15x4	(	q15_t *	pQ15,
		q63_t	value )

Write 4 Q15 to Q15 pointer.

Parameters

[in]	pQ15	points to input value
[in]	value	Q31 value

◆ write_q15x4_da()

__STATIC_FORCEINLINE void write_q15x4_da	(	q15_t **	pQ15,
		q63_t	value )

Write 4 Q15 to Q15 pointer and decrement pointer afterwards.

Parameters

[in]	pQ15	points to input value
[in]	value	Q31 value

◆ write_q15x4_ia()

__STATIC_FORCEINLINE void write_q15x4_ia	(	q15_t **	pQ15,
		q63_t	value )

Write 4 Q15 to Q15 pointer and increment pointer afterwards.

Parameters

[in]	pQ15	points to input value
[in]	value	Q31 value

◆ write_q31x2()

__STATIC_FORCEINLINE void write_q31x2	(	q31_t *	pQ31,
		q63_t	value )

Write 2 Q31 to Q31 pointer.

Parameters

[in]	pQ31	points to input value
[in]	value	Q63 value

Returns: none

◆ write_q31x2_ia()

__STATIC_FORCEINLINE void write_q31x2_ia	(	q31_t **	pQ31,
		q63_t	value )

Write 2 Q31 to Q31 pointer and increment pointer afterwards.

Parameters

[in]	pQ31	points to input value
[in]	value	Q63 value

◆ write_q7x4()

__STATIC_FORCEINLINE void write_q7x4	(	q7_t *	pQ7,
		q31_t	value )

Write 4 Q7 to Q7 pointer.

Parameters

[in]	pQ7	points to input value
[in]	value	Q31 value

◆ write_q7x4_ia()

__STATIC_FORCEINLINE void write_q7x4_ia	(	q7_t **	pQ7,
		q31_t	value )

Write 4 Q7 to Q7 pointer and increment pointer afterwards.

Parameters

[in]	pQ7	points to input value
[in]	value	Q31 value

◆ write_q7x8_ia()

__STATIC_FORCEINLINE void write_q7x8_ia	(	q7_t **	pQ7,
		q63_t	value )

Write 8 Q7 to Q7 pointer and increment pointer afterwards.

Parameters

[in]	pQ7	points to input value
[in]	value	Q63 value
